SCT4333QL Split Core Current Sensor Transformer
SCT4333QLSplit Core Current Sensor Transformerintroduction
This type of square shapedsnap-on current sensing transformeris popular and frequently used. Fullstar QL series CTS transform from 200A to 600A of input current into a mV or mA output. The products comply with VDE 0414,BS7626 and IEC 60044-1 standard.
product Parameter
| Size:in(mm) | ||||||
| Model | A | B | C | D | E | F |
| SCT019(S) | 50.8 | 53.3 | 15.5 | 19.1 | 19.1 | |
| SCT031QL | 82 | 85 | 26 | 31.8 | 31.8 | |
| SCT3625QL | 68 | 82 | 25 | 25.4 | 35.8 | 27 |
| SCT4333QL | 93 | 101.6 | 28.8 | 33.4 | 44.2 | 30 |
Applications | Sub-Metering Accurate Measurement Data Loggers to analyze Building & Machinery Performance Digital Fault Recorders Smart Grid Application Features Load Center Three Phase Balance Control In-Factory Display In-Home Display Inverters for Solar & Wind Turbine Systems Power Measurement Device For PLC |
Team
 | |

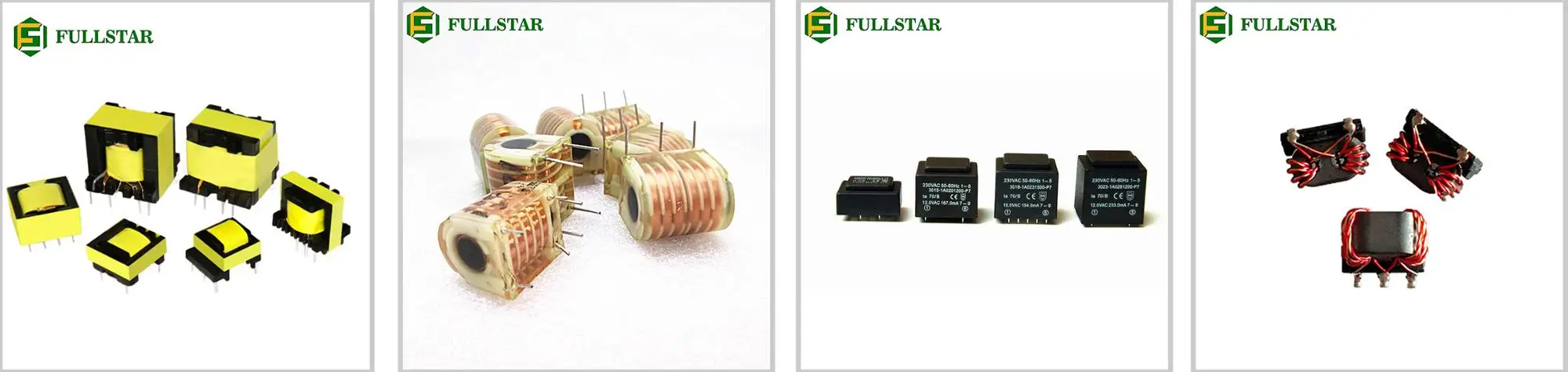

| Company profile | SHAANXI FULLSTAR ELECTRONICS CO.,LTDis specialized in electronics and magnetic components . The main products are SMD power inductors, SMD common mode inductors, RF transformer, Planar transformer, LAN transformer, High-frequency transformer, Low-frequency encapsulated transformer, SMD transformers and current sensors. We also do ferrite cores, bobbins, iron power cores, amorphous cores , sendust cores, etc., accessories. The products are exported to more than 40 countries and regions. Providing with quality and standard customer-made electronic and passive components common mode choke and solution products, Fullstar Electronics is a leading common mode choke manufacturer and supplier in China. welcome to wholesale electronics common mode inductor, cmc coils, toroidal choke inducor, toroidal common mode choke coil, common mode filter, through-hole choke filter from our factory. |
| 100% Guarantee Quality | 1.Manufactured Under Strict Controls. 2.100% Tested before shipment. 3.Within a period of 12 months from the date of shipment. |
| Our advantage | 1.High quality with competitive prices. 2.Free samples can provided. 3.Good service to each customers. |
| Our ideas | 1.To care for health and safety of employees as corporate responsibility,all production activities must give priority to employee’s safety and health. 2.To control the production process effectively and abide by law and meet customer’s requirements. 3.Focus on customer’s normal needs, with high quality high efficiency management to provide high quality service and products. 4.Save resources,lower energy consumption. Reduce environmental pollution caused by production. 5.Abide by law. 6.Continuous improvement, sustainable operation. |
Product feature
Measure current range：5A～600A
Max. measure current：720A Phase offset：≤30’
Work voltage：720V Flame resistance：UL94-V0
Operation temperature：-25℃～+70℃ Storage temperature：-40℃～+85℃
Model of cable：AWG20/AWG17，length 2m
Dielectric strength：AC 3500V/1min
(between output and shell)
Isolation resistance：＞100MΩ(500V DC)
(between primary and secondary)
